LogBox BLE is a bluetooth data logger for up to three analog sensors and one digital. The analog channels accept direct connection of thermocouple temperature sensors or Pt100 and sensors for any other quantities with signals in current or voltage. The digital channel could either record events with time stamp, such as opening a door or counting pulses from a flow sensor.
The logging interval of LogBox BLE is configurable, and the user can access the parameters using a desktop or notebook via USB interface  with the NXperience software or using Android smartphone or tablet via Bluetooth with NXperience Mobile app into Android and iOS devices. Both applications allow the configuration, download and analysis of the records.
Since LogBox BLE is the first data logger of Connect family, it can be named as one of the best products on the market for applications that require accuracy in the recording of temperature data, such as laboratories, cold rooms, data centers, among others for requirements such as wireless technology recorder.

– 4 channels, including:
  3 analog inputs: Analog sensor type: Thermocouples J, K, T, E, N, R, S, B; Pt100; 0-5 V; 0-10 V; 0-50 mV; 0-20 mA;    4-20 mA
  1 Digital input: pulses counting, events recording or logger start
  1 PNP digital output: electronic switch (to control the power supply of signal transmitters) or alarm
– Alarms: up to 8 alarms, being low and high alarm per channel
– Internal alarm buzzer
– Accuracy:
  Pt100: 0.12 % of the measuring range.
  Thermocouples, mV, V, mA: 0.15 % of measuring range
– Internal sensors: NTC for temperature, internal battery voltage and external source voltage
– Resolution for temperature sensors: 0.1 ° C
– Communication Interfaces: USB, Bluetooth 4.1 (BLE)
– Interface with the SCADA system: No
– Memory for records: 140.000 with time stamps
– Power supply: 10 to 30 Vdc. Or 4 AA alkaline batteries (already included) with typical 2 years autonomy
– Enclosure: ABS + PC, protection IP40, 120 (W) x 100 (H) x 40mm (D)
– Fixing: cradle fixed in wall by screws or magnetic fixation
– Configuration software: NXperience (for USB PC) or NXperience BLE (Bluetooth app for smartphone) 3-line display with 4 ½ digits
– Record Interval: 1 second to 18 hours

LogBox Wi-Fi is an IoT device with integrated data logger and Wi-Fi connectivity. It allows monitoring and recording of data remotely, in facilities with Wi-Fi infrastructure. The data can be accessed remotely, wirelessly and centralized through SCADA application, cloud dashboard or by NXperience software. Easy installation and accessibility are highlights of this device.
The device has three universal analog inputs and one digital input, that can operate as counter of pulses (flow sensor) or recorder of events (opening/closing doors). LogBox Wi-Fi has MQTT protocol to publish data into IoT brokers, Cloud or SCADA system, as well as Modbus TCP protocol to operate as slave into SCADA systems.
The device provides uninterrupted recording of data, even in failures of power supply or wireless link, due to its 2-year autonomy backup battery. LogBox Wi-Fi can be used to comply with security requirements of FDA Regulation Title 21 CFR Part 11.

LOGBOX 3G

3G/2G MULTI ChANNEL DATA LOGGER

DETAILS

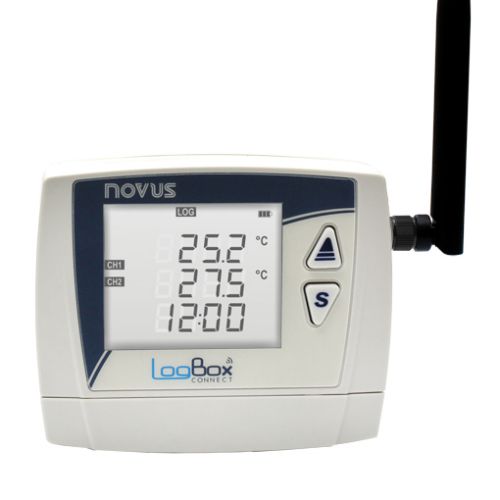

LogBox 3G is an IoT device with integrated data logger and 3G / 2G connectivity which allows remote telemetry or mobile monitoring solution. Data can be accessed remotely and centralized via NXperience software for Windows or via NOVUS Cloud IoT platform. Moreover, NOVUS may provide access to LogBox 3G for SCADA system or proprietary application through specific communication driver, upon request. Secure, real-time information accessed quickly and easily.
The device has two universal analog inputs that accept a wide range of sensors. It also has internal sensors for measuring temperature, battery voltage and external sources. In addition, LogBox 3G has SMS commands and alarm alerts.

– Analog Inputs: 2
– Type of sensors: Thermocouples J, K, T, E, N, R, S, B; Pt100; 0-5V; 0-10V; 0-50mV; 4-20mA
– Digital inputs: 1 for dry contact or voltage pulse
– Alarm outputs: 1 transistor output and buzzer for local sound signaling
– Accuracy: Pt100: 0.12% of the measuring range. Thermocouples, mV, V, mA: 0.15% of measuring range
– Communication interfaces: USB and 3G mobile phone, optional GPS
– SCADA system Interface: Through 3G driver
– Cloud Interface: NOVUS Cloud
– Memory: 140,000
– Power Supply: External 12 to 30Vdc, internal UPS for 2h
– Housing: In ABS + PC, protection IP40, 120 (W) x 100 (H) x 40mm (D)
– Fixing: fixed in wall by screws or magnetic fixation (optional)
